Bearings are frequently called the “joints of sector.” Obtaining the selection right straight impacts your equipment’s integrity, service life, and upkeep expenses. Several bearing failures don’t come from low quality– they originate from wrong choices. Points like lots computation mistakes, neglecting speed limitations, or selecting the wrong lubrication technique. These little errors can trigger devices to break down early in its life span. This guide strolls you with the whole option process, offering engineers and purchase experts a clear path from examining working conditions to validating the ideal bearing design.
Part One: What You Need to Know Before Beginning
Prior to you open any kind of bearing magazine, ask on your own one concern: What exactly does this machine require the birthing to do? The answer lies in five vital areas:
1. Lots Qualities
Lots is the number one factor in birthing option. You require to find out 3 things:
Instructions: Is it radial tons (vertical to the shaft), axial tons (parallel to the shaft), or a mix of both?
Dimension: Is it light, moderate, or heavy? Any kind of influence loads?
Nature: Is the tons constant or transforming? Exactly how often do impact loads take place and just how strong are they?
Take a belt conveyor as an example. The bearings at the drive end handle radial loads from belt tension, the weight of the belt and rollers, plus the shaft setting up. When calculating, you have to think about different operating conditions– start-up, typical operating, stopping– and make use of the worst-case situation for your layout.
2. Rate Conditions

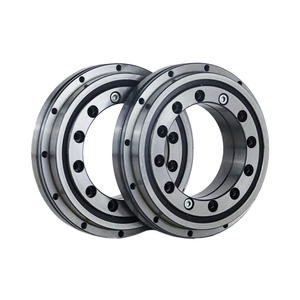

(bearings for steel mill)
Rate is one more essential aspect affecting birthing life. According to exhaustion life theory, bearing life has an inverted relationship with rate. For variable rate conditions, you require to calculate the comparable rate. Take a rotary kiln assistance roller– its rate may vary from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to get a comparable worth.
Something to keep an eye out for: knowing only the maximum rate can ruin your lubrication technique. The lubricating substance you select based upon top speed could not create a correct oil movie at lower rates. Likewise, if your device has long idle durations, you must mention that– otherwise neighboring equipment resonances might trigger incorrect brinelling damage.
3. Required Service Life
Bearing life span is usually revealed as L10h (the variety of hours that 90% of a bearing group will reach prior to fatigue spalling shows up). A common mistake is opting for an extremely lengthy life– once L10h goes beyond 100,000 hours, the bearing size obtains as well large. It becomes more challenging to lube, torque boosts, and it ends up being more conscious minimum lots. In the long run, it could stop working for factors besides fatigue.
4. Room Constraints
You must recognize your offered space limitations from the beginning– shaft size variety, housing birthed dimension, axial size limitations. Once you recognize the matching shaft diameter and readily available space, you can quickly narrow down your alternatives.
5. Running Precision Demands
A lot of applications do just fine with common precision bearings. But for high-speed or high-precision equipment like machine tool pins, you’ll require P5, P4, and even greater grades. Simply remember that going for greater accuracy without a genuine need will certainly drive up expenses considerably. Match the grade to your real demands.
Sequel: Matching Birthing Types to Functioning Conditions
Once you have those parameters clear, the next action is to match the best bearing kind based on lots direction, size, speed, and imbalance resistance.
1. Load Direction: Radial, Axial, or Combined?
This is one of the most fundamental filter. It can aim you to a couple of candidates today:

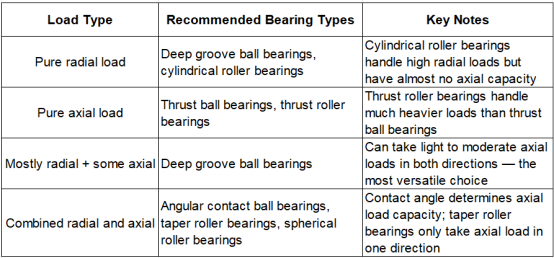

When the axial-to-radial tons ratio (Fa/Fr) modifications, your option logic adjustments also. At reduced proportions, go with deep groove round bearings. At moderate proportions, utilize small-contact-angle angular get in touch with bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or consider incorporating a drive bearing with a radial bearing.
( Radial)
2. Tons Size: Ball Bearings or Roller Bearings?
This is a traditional selection:
Light or moderate tons: Opt for round bearings (deep groove or angular get in touch with). The factor get in touch with between spheres and raceways gives reduced rubbing, making them appropriate for tool to high speeds.
Heavy or impact loads: You must make use of roller bearings (round, spherical, or taper). Line contact in between rollers and raceways offers much greater tons capacity and much better effect resistance.
3. Rate: Round Bearings for High Speed, Roller Bearings for Low
Typically talking, round bearings have greater speed limitations than roller bearings. For high-speed applications (above 1000 r/min), put round bearings on top of your list. When you need the highest feasible rate with pure radial lots, open deep groove sphere bearings are your best option. For combined tons at broadband, angular contact sphere bearings are the method to go.
Round roller bearings, taper roller bearings, and needle bearings have fairly lower rate limits. They’re mainly matched for low-to-medium speed, heavy-load problems.
4. Imbalance Tolerance: Do You Required Self-Aligning?
This one typically gets neglected yet it’s incredibly crucial. You need to think about self-aligning bearings when:
Birthing housing bores do not align well
The shaft isn’t rigid adequate and bends during procedure
The bearing span is lengthy and thermal expansion creates angular imbalance
You’re making use of different split housings (like cushion block bearings)
Round roller bearings and spherical ball bearings have scooped outer ring raceways. This permits a particular quantity of angular misalignment in between the inner and external rings without damaging edge anxiety. They can compensate for both dynamic deflection and static installment errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely limited self-aligning capacity. Also a tiny angular imbalance can cause tension concentration at the roller finishes, resulting in high side stress that significantly reduce birthing life. Deep groove round bearings do have some self-aligning capability, yet the allowable angle is tiny– surpassing it will certainly lower life as well.
5. Axial Development Settlement: Fixed End or Drifting End?
Long shafts broaden and contract with temperature changes throughout procedure. That implies you require to establish your bearing setup with one set end and one floating end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation openly in the axial direction about the real estate– making them ideal as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both instructions, so they work well as fixed-end bearings. This arrangement is very common in transmissions and electric motors.
Part Three: BMB Product Line at a Glance

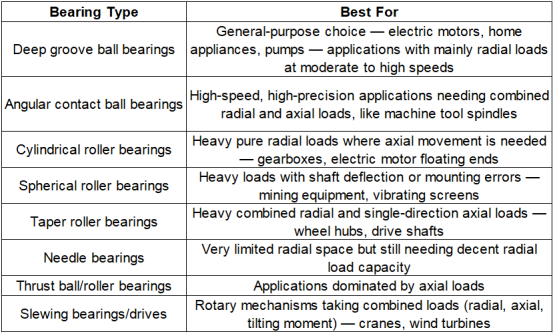

BMB uses a full range of industrial bearings, covering all the major kinds we have actually gone over. This quick referral table links the option principles above straight to particular product categories:
Component 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion precision (P0) benefits the vast majority of basic machinery. For accuracy tools like equipment tool pins or aerospace elements, you’ll need P5 or higher. Tighter precision implies tighter dimensional resistances and far better running precision– but also higher costs.
2. Interior Clearance and Preload
Bearings need to maintain appropriate interior clearance after setup. Too much clearance results in vibration and noise. Insufficient, and thermal expansion can create the bearing to confiscate. In grandfather clauses like maker tool pins, preload (applying adverse clearance) is used to improve system rigidness and rotational accuracy.
3. Lubricating substance Option
Lubrication is a make-or-break element for birthing life. Oil benefits most moderate-speed and temperature applications– it’s straightforward to secure and can run maintenance-free for extended periods. Oil (oil bathroom, oil haze, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates warm better. When choosing a lubricant, examine the rate aspect (ndm worth). Do not just select based on optimum rate– the oil you choose may not develop an appropriate movie at lower rates.
4. Securing Arrangements
Choose the seal type based upon your atmosphere: contact seals maintain dust out well however add some friction; non-contact seals work for broadband but provide less defense against contamination; open bearings rely on outside sealing systems.
Part Five: Life Estimation– From Theory to Practice
( or Combined Basic Filter Table)
At the end of the day, you need to validate whether your selected bearing will actually meet the predicted service life. This is where fundamental rating life computation can be found in.
The basic score life L10 formula (ISO 281 standard):
For sphere bearings: L10 = (C/P) SIX × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: fundamental vibrant tons ranking (kN)– found in the product directory
P: comparable vibrant lots (kN)– takes both radial and axial lots right into account
The comparable vibrant load P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial load
X and Y are coefficients that rely on birthing kind and the Fa/Fr proportion– check the brochure for these values
For even more demanding problems, you can use change variables: Ln = a1 × a2 × a3 × L10
a1 is the integrity factor (a1 = 1 for 90% reliability, concerning 0.21 for 99%)
a2 is the material factor (high-quality bearing steel can reach 1.5 to 2)
a3 is the operating conditions element (excellent lubrication and tidiness can provide 2 to 3)
With this estimation, engineers can confirm that the selected bearing meets the necessary service life. It likewise helps contrast numerous choices and make data-driven choices.
This overview has walked you with the complete choice course– from analyzing working conditions, to matching the best bearing type, to verifying life span. Comprehending and using this methodology will assist you make accurate, reliable, and cost-effective bearing choices throughout a wide variety of industrial applications.
